TaskBarBackgroundTemplate

It's common to customize the look and feel of a task bar with custom task backgrounds to visualize more information available in the bound objects.

For example, there could be a base line start and end properties in your bound list elements that you want to visualize in the gantt chart just so you know which tasks went past-due.

You might want to visualize such tasks that went past-due with a "red bar" indicating the planned end time for such tasks.

To achieve this first define a TaskBarBackgroundTemplate.

This property in the GanttControl lets you define the UI for your custom task background.

In HTML

// Custom template to indicate tasks that went past due

// Note that a GanttTaskItemBar widget options will be the DataContext for all those UI elements,

// So, you can refer to it's properties in the binding code below,

// 1) To refer to a property in the IActivity instance, the binding expression will look like this:

// "${ActivityView.Activity.StartTime}"

// 2) The refer to a property in the underlying data source, the binding expression will look like this:

// "${ActivityView.Activity.DataSource.PlannedEndTime}"

var taskBarBGTemplate = '<div class="baseline-style" style="width: ${widthConverter(data)}; margin:${leftConverter(data)}" title="${taskBarBGTmplTooltip(data)}"></div>';

$ganttControl.GanttControl({

ProjectStartDate: anchorTime,

DataSource: self.jsonData,

AnchorTime: anchorTime,

TaskBarBackgroundTemplate: baseLineTemplate

});

In ASP.NET MVC

@Html.JQProjectGantt(

new JQProjectGanttSettings()

{

ControlId = "gantt_container",

AfterGanttWidgetInitializedCallback = "AfterGanttWidgetInitializedCallback",

DataSourceUrl = new Uri("/Home/GanttControlItemSource", UriKind.RelativeOrAbsolute),

Options = new ProjectGanttOptions()

{

IDBinding = new Binding("ID"),

NameBinding = new Binding("Name"),

IndentLevelBinding = new Binding("IndentLevel"),

StartTimeBinding = new Binding("StartTime"),

EffortBinding = new Binding("Effort"),

PredecessorIndicesBinding = new Binding("PredecessorIndices"),

ProgressPercentBinding = new Binding("ProgressPercent"),

DescriptionBinding = new Binding("Description"),

TaskBarBackgroundTemplate = "<div class='baseline-style' style='width: ${widthConverter(data)}; margin:${leftConverter(data)}' title='${taskBarBGTmplTooltip(data)}'></div>",

GanttChartOptions = new GanttChartOptions()

{

AnchorTime = DateTime.Today

}

)

In ASP.NET

<RQ:GanttControl ID="gantt" DataSourceUrl="../../TaskListHandler.ashx"

TaskBarBackgroundTemplate="<div class='baseline-style' style='width: ${widthConverter(data)}; margin:${leftConverter(data)}' title='${ taskBarBGTmplTooltip(data)}'></div>"

AfterGanttWidgetInitializedCallback="this.AfterGanttWidgetInitializedCallback"

LocalizationResourceFilePath="../../Src/ResourceStrings/"

Height="500px" runat="server" />

And the leftConverter and widthConverter would look like this:

// Calculating the width of the TaskBarBackgroundTemplate

function widthConverter(data) {

var ganttChart = data.GanttChart;

var DataSource = data.ActivityView.Activity_M().DataSource_M();

var plannedStart = DataSource.PlannedStartTime;

var plannedEnd = DataSource.PlannedEndTime;

// Use this utility in GanttChart to determine the location of the past due bar.

var rightX = plannedEnd ? ganttChart.ConvertTimeToX(plannedEnd) : 0;

var leftX = plannedStart ? ganttChart.ConvertTimeToX(plannedStart) : 0;

return (rightX - leftX) + "px";

}

// Calculating the left margin for TaskBarBackgroundTemplate

function leftConverter(data) {

var ganttChart = data.GanttChart;

var plannedStart = data.ActivityView.Activity.DataSource.PlannedStartTime;

// Return the setting for the margin.

return "1px 0px 1px " + (plannedStart ? ganttChart.ConvertTimeToX(plannedStart) : 0) + "px";

}

// Using the bound data in tooltip for TaskBarBackgroundTemplate

function taskBarBGTmplTooltip(data) {

data.rendered = function () {

$(this.nodes).tooltip({

content: function (val) {

var toolTipDateformat = 'dd-MMM-yyyy';

var ds = data("tmplItem").data.ActivityView.Activity_M().DataSource_M();

var PStartTime = ds.PlannedStartTime.toString(toolTipDateformat);

var PEndTime = ds.PlannedEndTime.toString(toolTipDateformat);

return "<div align='center'><span style='font-weight:bold'>BaseLine</span></div><div><span style='font-weight:bold'>Start:</span> " + PStartTime + "</div><div><span style='font-weight:bold'>End:</span> " + PEndTime + "</div>";

}

});

}

return "";

}

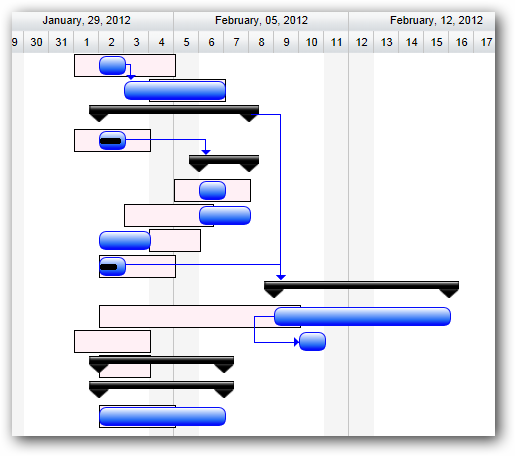

The above settings will result in the gantt tasks rendered with baseline bars.

Baseline indicated using background template

This is illustrated in this samples:

In HTML : ..\Samples\GanttControlTemplateSample1.htm.

In ASP.NET MVC : ..\Views\Home\ProjectGantt\GanttControlTemplateSample1.cshtml.

In ASP.NET : ..\Samples\ProjectGantt\GanttControlTemplateSample1.aspx.
