Row Specific Schedule for Rendering


Sometimes, you might be plotting times on a resource each of which has a custom schedule.


For example, you might want to plot assignments made to a machine that is running on 3 different shifts:

Shift 1 - 12AM to 8AM

Shift 2 - 8AM to 4PM

Shift 3 - 4PM to 12AM


An assignment on Shift 2, running from 12PM to 4PM would appear like this normally in the FlexyGantt:


Plotting 12PM to 4PM in a FlexyGantt


If you then want to Size-to-fit the times for these shifts, you will have to supply the corresponding, varying schedule of each row to the gantt.


You can do so by first including a "Schedule" property for the data object that represents each row like this:

public class Machine

{

        ....

        public WorkTimeSchedule WorkTimeSchedule { get; set; }

}


Then set this property in FlexyGantt to let the gantt use this schedule while rendering bars in the row corresponding to this data.


        <fxgantt:FlexyGantt x:Name="fxgantt" ....

                           RowRenderingScheduleBinding="{Binding Data.WorkTimeSchedule}"

        />

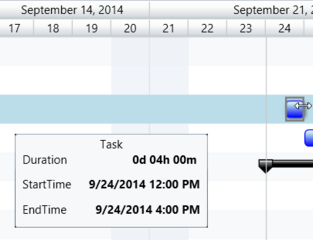

This will then render the 4 hour bar like this within that row:


4 hour bar sized to fit an 8 Hour Shift Schedule.


Resizing and Shifting will also restrict the times within the specified schedule.
